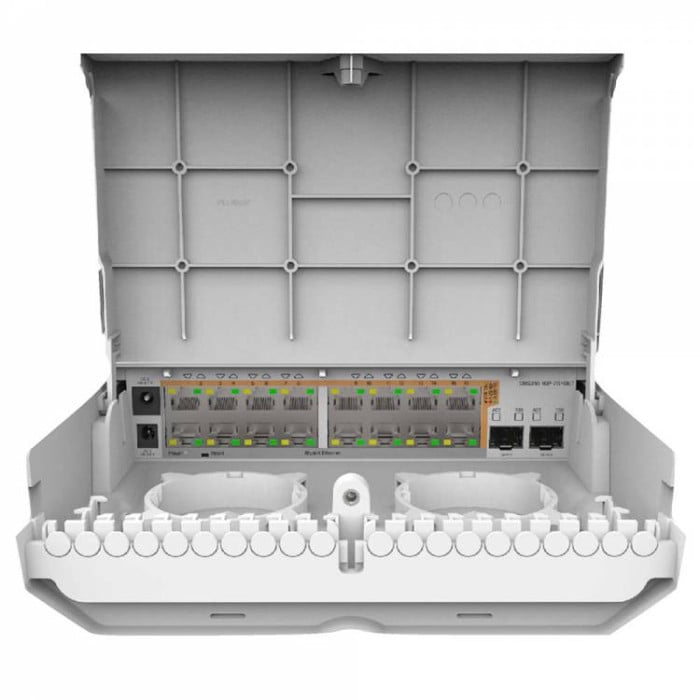

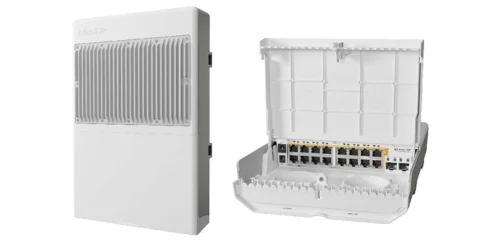

CRS318‑16P‑2S+OUT
Product Highlights:
-
Outdoor‑rated switch with 16 Gigabit PoE‑out ports
-
2 × 10 Gb SFP+ fiber uplink ports for high-speed backhaul
-
Dual power inputs (18–30 V or 48–57 V DC)
-
Can auto‑sense and deliver 802.3af/at PoE on all 16 ports
-
Rugged design made for pole or mast mounting
-
Manageable via RouterOS or SwitchOS
-
High switching performance (~36 Gbps capacity)
netPower 16P with 800MHz CPU, 256MB RAM, 16x Gigabit LAN with PoE-out, 2xSFP+ cages, RouterOS L5 or SwitchOS (dual boot), outdoor enclosure, mounting kit (power supply NOT included)
| Feature | Specification |
|---|---|
| Product Code | CRS318‑16P‑2S+OUT |
| CPU | Marvell 98DX226S, 800 MHz |
| RAM | 256 MB |
| Storage | 16 MB Flash |
| Switch Chip | Marvell 98DX226S |
| Ethernet Ports | 16 × 10/100/1000 RJ45 |
| SFP+ Ports | 2 × 10 Gb SFP+ |
| Operating System | RouterOS / SwitchOS |
| Dimensions | 303 × 212 × 78 mm |
| Power Input | 2 × DC jack (18–30 V or 48–57 V) |
| Power Consumption | Up to ~316 W (with PoE load) / ~16 W idle |
| PoE‑Out | 16 ports, 802.3af/at (auto-sensing) |
| Max PoE Current (Low Input) | 1.1 A per port, 2.8 A per 8-port group (if input < 30 V) |
| Max PoE Current (High Input) | 0.6 A per port, 1.4 A per 8-port group (if input > 30 V) |
| Switching Throughput | 36 Gbps |
| Forwarding Rate | ~53.6 Mpps |
| Operating Temperature | –40 °C to +70 °C |
| Certifications | CE, EAC, RoHS, Outdoor‑rated enclosure |
