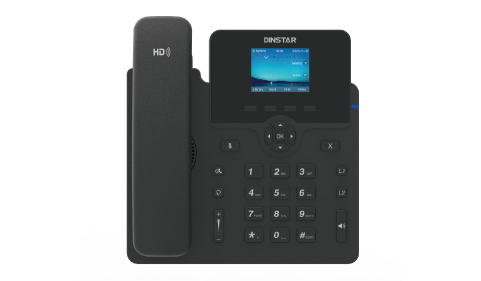

C62UP
Product Highlights:
• 2 Linekeys
• 6 Extension accounts
• 2.4″ high resolution color TFT display
• Dual‐port Gigabit Ethernet
• XML Browser
• Action URL/URI
• Key Lock
• Phonebook: 500 Groups
• Blacklist: 100 Groups
• Call Log: 100 Logs
• Support 5 Remote Phonebook URLs
• HTTP/HTTPS/FTP/TFTP
• G.729, G723_53, G723_63, G726_32
C62UP is an entry-level color screen IP Phone with high performance. It features 2.4″ high resolution color TFT display with backlight, brings visual information presentation to a new level. freely programmable multicolor function keys give the user high versatility. Each function key can configure for a variety of one-touch telephony functions such as speed dial, busy lamp field.Based on the SIP standard, the C62U/C62UP has been tested to ensure high compatibility with leading IP telephony system and equipment, enabling comprehensive interoperability, easy maintenance, high stability as well as quick offering of rich services.
Screen | 2.4″ High resolution |
Resolution | 240×320 |
Protocols | FTP/TFTP/HTTP/HTTPS/PnP |
Ring Tones | Selectable |
Time Features | NTP/Daylight saving time |
Software Upgrade | Web-based |
Configuration | Backup/restore |
DTMF | In‐Band, RFC2833, SIP INFO |
Mounting | Wall Mountable |
Calling Features | IP Dialing, Redial, Call Return, Blind/Attendant Transfer, Call Hold, Mute, DND, Call Forward, Call Waiting |
Messaging | SMS, Voicemail, MWI |
Ports | 2xRJ45 10/1000M Ethernet Ports |
