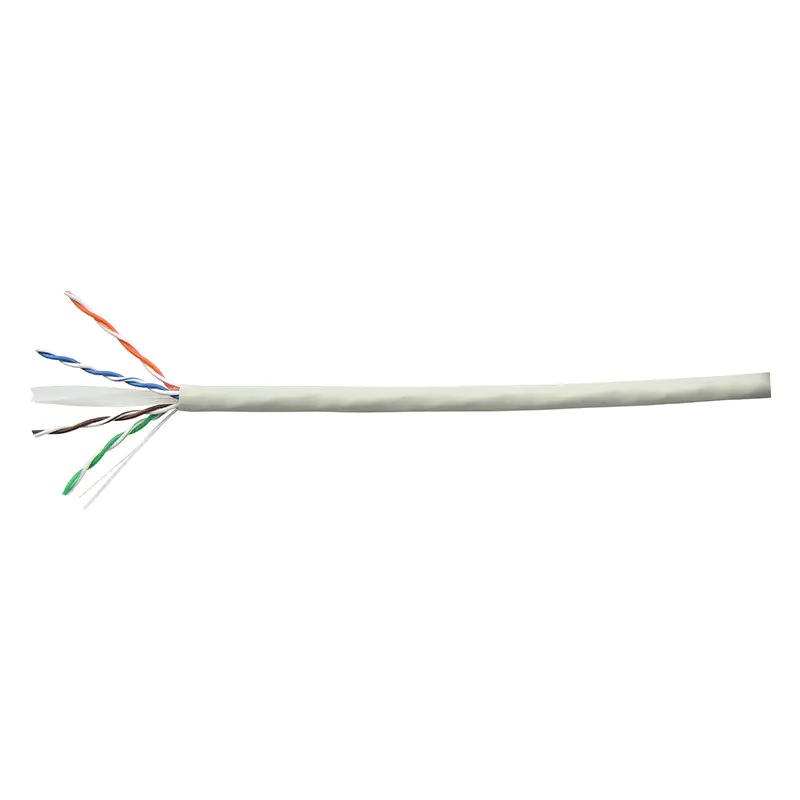

Cat 6 UTP Cable

Product Highlights:

    ● 305 Meter, UTP
    ● Number of Pairs: 4
    ● 23AWG
    ● Rated temperature:70℃
    ● Reference standard: UL Subject 444, EIA/TIA 568B.2-10& ISO/IEC 11801, IEC 61156
    ● Solid bare copper conductor
    ● Colour-coded PE insulation
    ● Rip cord (optional)
    ● PVC or LSZH jacket
    ● Packaging: Reel, Reel in Box

Buy This Product
description Specifications

Cat 6 UTP pure solid cable (CLA04-UC6), 23 AWG, 305m

MAX. Matual Capacitance @ kHz: ≤5.6 nF/100M
MAX. Capacitance unbalance (pF/ 100m): ≤330pF/100M
Nominal Velocity of Propagation: 69%
Max. Delay Skew (ns/100m): 45ns/100M
Max. Conductor DC Resistance @ 20 Deg. C: 7.32Ω /100M(23AWG)
Max. DC Resistance unbalance @ 20 Deg. C: ≤2%
Max. Insulation resistance (MΩ/ k m): 5000
Max. Operating Voltage-UL: 300V
