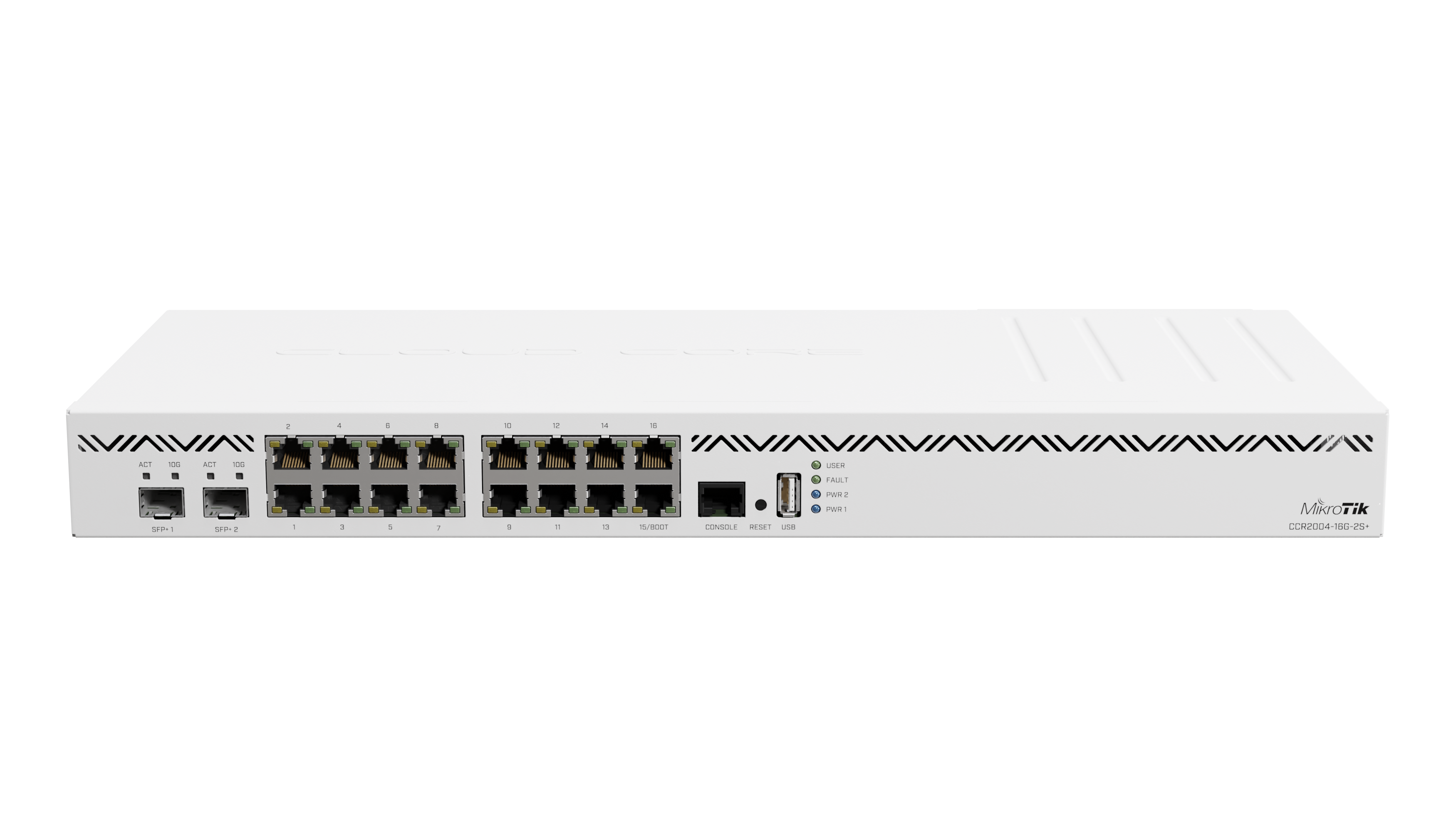

CCR2004-16G-2S+
Product Highlights:
• Featured the Annapurna Labs Alpine v2 CPU with 4x
64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz
• 16x Gigabit Ethernet ports and two 10G SFP+ cages.
• Built-in dual redundant power supplies.
• 4GB of DDR4 RAM.
• 128 MB of NAND storage.
Cloud Core Router 2004-16G-2S+ with Annapurna Labs Alpine v2 CPU with 4x ARMv8-A Cortex-A57 cores running at 1.7GHz, 4GB of DDR4 RAM, 128MB NAND storage, 16 x Gbit LAN, 2x SFP+ ports, 1U rackmount case, Dual PSU, RouterOS L6
Details
Product code CCR2004-16G-2S+
Architecture ARM 64bit
CPU AL32400
CPU core count 4
CPU nominal frequency 1700 MHz
Switch chip model 88E6191X
Dimensions 443 x 210 x 44 mm
RouterOS license 6
Operating System RouterOS v7
Size of RAM 4 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes
Powering Details
Number of AC inputs 2
AC input range 100-240
Frequency (Hz) 50-60
Max power consumption 48 W
Max power consumption without attachments 35 W
Cooling type 2 fans
Ethernet Details
10/100/1000 Ethernet ports 16
Fiber Details
SFP+ ports 2
Peripherals Details
Serial console port RJ45
Other Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals Details
Certification CE, EAC, ROHS
IP IP20
