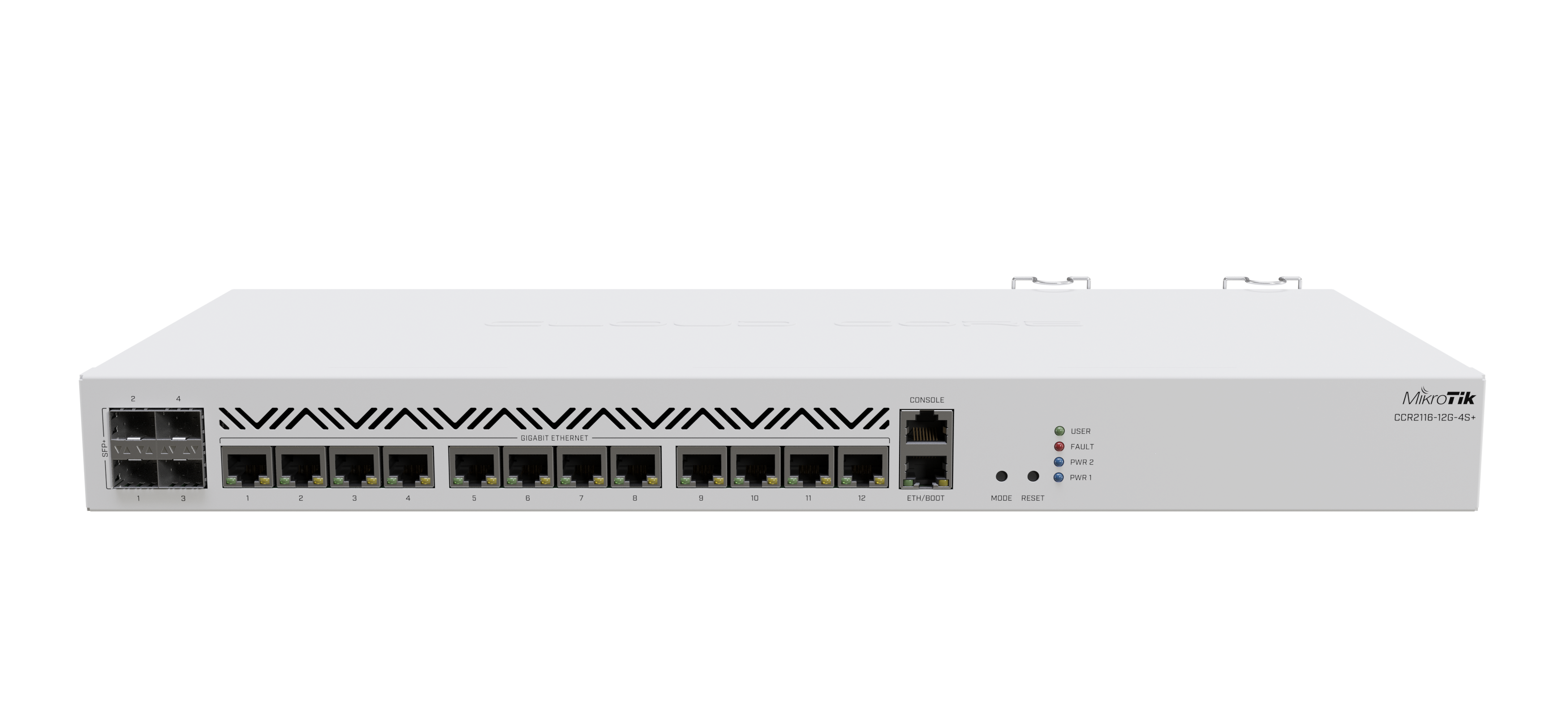

CCR2116-12G-4S+
Product Highlights:
• A new standard of single-core performance in the whole CCR product family.
• Four 10G SFP+ ports.
• A powerful 16-core ARM CPU .
• A dual-redundant power supply
Forget about CPU limitations in 10G setups with this powerful 16-core ARM CPU based CCR. Double the performance of our previous 36- core CCR, 6x faster BGP performance. Includes an M.2 PCIe slot.
Details
Product code CCR2116-12G-4S+
Architecture ARM 64bit
CPU AL73400
CPU core count 16
CPU nominal frequency 2000 MHz
Switch chip model 98DX3255
Dimensions 443 x 199 x 44 mm
RouterOS license 6
Operating System RouterOS v7
Size of RAM 16 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes
Powering Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 83 W
Max power consumption without attachments 60 W
Cooling type 4 fans
Ethernet Details
10/100/1000 Ethernet ports 13
Fiber Details
SFP+ ports 4
Peripherals Details
Serial console port RJ45
Number of M.2 slots 1
Other Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
Certification & Approvals Details
Certification CE, EAC, ROHS
