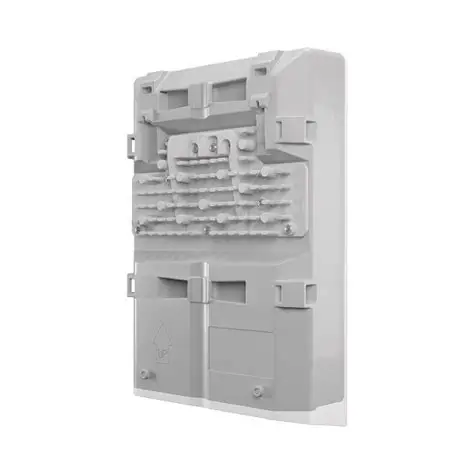

CRS318-1Fi-15Fr-2S-OUT
Product Highlights:
-
Outdoor managed switch with 16 × Fast Ethernet ports and 2 × SFP uplinks.
-
Supports Reverse PoE, ideal for powering from customer CPEs.
-
Dual boot between RouterOS and SwOS for flexibility.
-
Fanless and weatherproof, designed for outdoor deployments.
-
Perfect for FTTH or WISP access networks.
netPower 15FR with 800MHz CPU, 256MB RAM, 16 x 10/100Mbps Ethernet ports (15 with Reverse POE-in, 1 with PoE-OUT), 2 x SFP, RouterOS L5 or SwitchOS (dual boot), outdoor enclosure, mounting kit (power supply NOT included)
| Feature | Details |
|---|---|
| Product Code | CRS318-1Fi-15Fr-2S+OUT |
| Product Name | netPower 15FR |
| Product Series | Cloud Router Switch (CRS) |
| Switch Chip Model | 98DX224S |
| CPU | 800 MHz |
| RAM | 256 MB |
| Storage | 16 MB Flash |
| Operating System | Dual boot: RouterOS / SwOS (Managed) |
| Ethernet Ports | 16 × 10/100 Mbps (1 × PoE-Out + 15 × Reverse PoE-In) |
| SFP Ports | 2 × SFP (1 Gbps) |
| PoE Input | 15 × Reverse PoE-In (18–57 V DC) |
| PoE Output | 1 × Passive PoE-Out (Ether15) |
| Power Input (Alternative) | 2-pin DC jack (18–57 V DC) |
| Max Power Consumption | 29 W (10 W without attachments) |
| Switching Capacity | 7.2 Gbps |
| Non-blocking Throughput | 3.6 Gbps |
| Cooling Type | Passive (fanless) |
| Dimensions | 304 × 212 × 71 mm |
| Operating Temperature | −40 °C to +70 °C |
| License Level | RouterOS Level 5 |
| Enclosure Type | Outdoor weatherproof |
| Management Interface | Web GUI (SwOS) / CLI (RouterOS) |
| Mounting | Wall or pole mount |
| Certifications | CE, EAC, RoHS |
