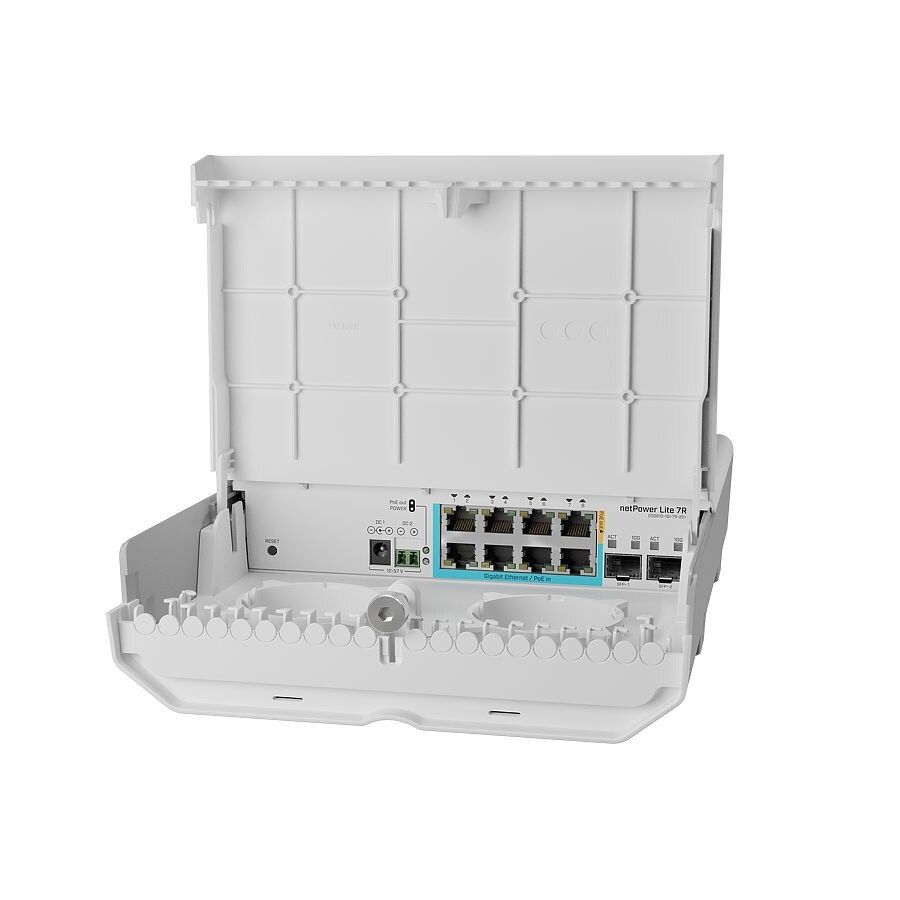

CSS610-1Gi-7R-2S+OUT

Product Highlights:

    • Outdoor-ready: Weatherproof design for pole or wall mounting.

    • Reverse PoE: 7 × Gigabit ports accept PoE-in; 1 × PoE-out port powers other devices.

    • High-speed uplinks: 2 × 10 G SFP+ fiber ports for fast backhaul.

    • Flexible power: Runs from DC jack, terminal, or reverse PoE (12–57 V).

    • Fast switching: 56 Gbps capacity, 28 Gbps throughput.

    • Rugged build: Operates from −40 °C to +70 °C, passive cooling (no fan).

Buy This Product
description Specifications

netPower Lite 7R with 8 x Gigabit Ethernet ports (7 with Reverse POE-in, 1 with PoE-OUT), 2 x SFP+ cages, SwitchOS, outdoor enclosure, mounting kit (power supply NOT included)
Product Model CSS610-1Gi-7R-2S+OUT (netPower Lite 7R)
Switch Chip Marvell 88E6193X
Operating System MikroTik SwOS Lite
Ethernet Ports 8 × 10/100/1000 Mbps (RJ-45)
PoE Functionality 7 × Reverse PoE-in (Ether1–Ether7)
1 × PoE-out (Ether8)
Fiber Ports 2 × SFP+ (10 Gbps)
Switching Capacity 56 Gbps
Non-blocking Throughput 28 Gbps
Forwarding Rate 41.7 Mpps
Power Inputs DC jack, 2-pin terminal, Reverse PoE-in
Input Voltage Range 12 – 57 V DC
Max Power Consumption 7 W (standalone) / 29 W (with attachments)
PoE-Out Port (Ether8) Passive PoE out
<30 V: 600 mA max >30 V: 450 mA max
Cooling Type Passive (no fan)
Operating Temperature −40 °C to +70 °C
Enclosure Type Outdoor (IP rated, sealed plastic housing)
Dimensions (W×D×H) 304 × 212 × 71 mm
Mounting Wall or Pole mountable
Use Case Outdoor PoE distribution / GPEN network deployments
MTBF (est.) ~200,000 hours @ 25 °C
