RG‑AP6920‑D
Product Highlights:
-
Industrial-grade design with IP68 protection, –40 °C to +55 °C range, and 6 kV lightning protection.
-
Seamless Wi‑Fi 7 upgrade with dual radios and 3.570 Gbps peak throughput.
-
Built-in directional antennas for strong outdoor signal coverage.
-
Digital Twin network support, improving network O&M efficiency by 30%.
-
Flexible power options including PoE/PoE+ (802.3af/at) and 48 V DC.
The Ruijie RG‑AP6920‑D is a Wi‑Fi 7 outdoor access point with dual radios delivering up to 3.570 Gbps, an IP68‑rated rugged design, built‑in directional antennas for strong long‑range coverage, and support for PoE/PoE+ or 48 V DC power, making it ideal for reliable outdoor connectivity.
| Specification | Details |
|---|---|
| Model | RG‑AP6920‑D Outdoor Access Point |
| Wi‑Fi Standard | Wi‑Fi 7 (802.11a/b/g/n/ac/ax/be) |
| Peak Data Rate | 3.570 Gbps (dual‑radio) |
| Radio | 2.4 GHz 2×2 MIMO + 5 GHz 2×2 MIMO |
| Antenna | Directional built‑in (2.4 GHz 9 dBi, 5 GHz 15 dBi) |

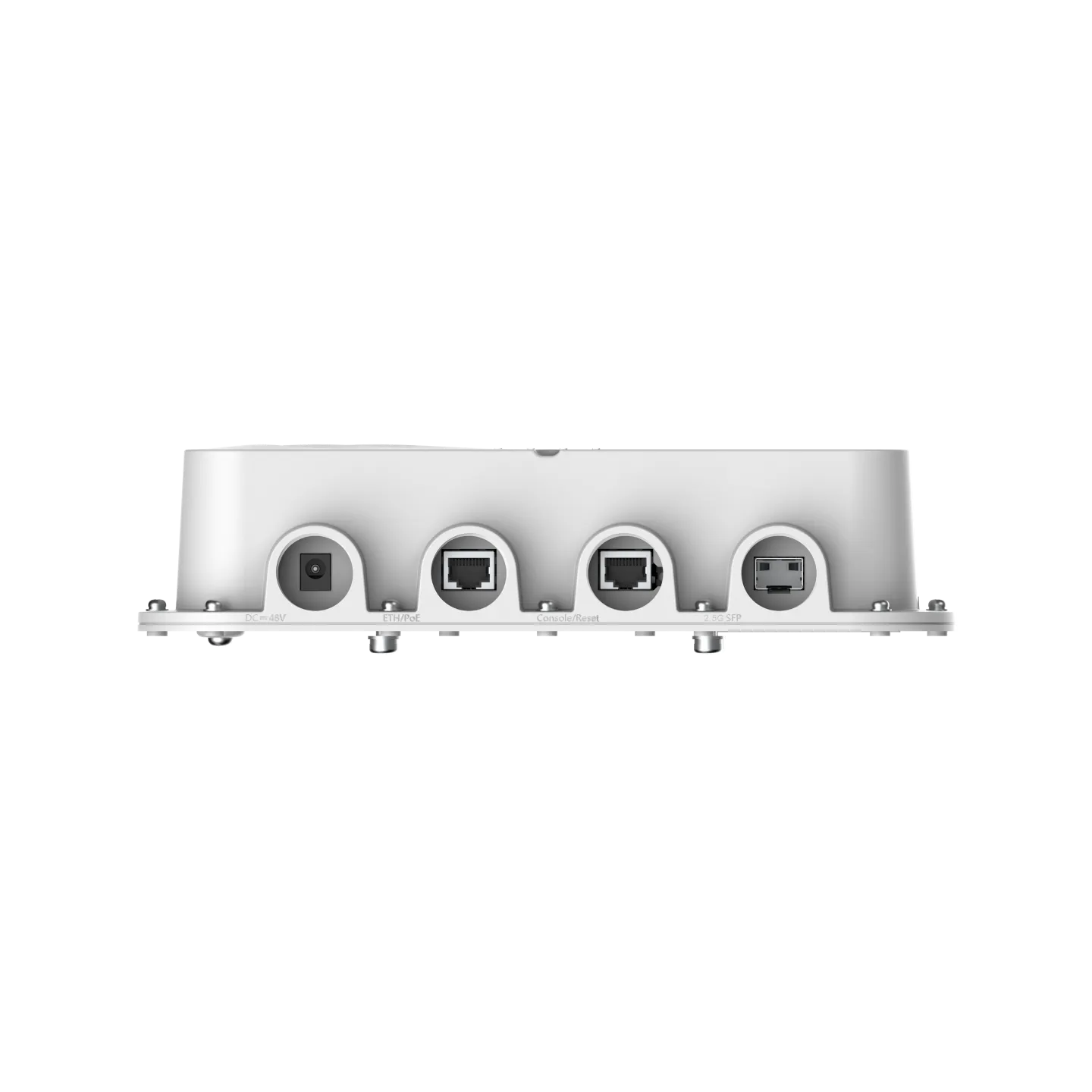

| Ports | 1× 2.5GBASE‑T, 1× 2.5GE SFP, 1× RJ45 console |
| Bluetooth | Bluetooth 5.3 |
| Power | 48 V DC or PoE/PoE+ (802.3af/at) |
| Max Power | 30 W |
| Operating Temp. | –40 °C to +55 °C |

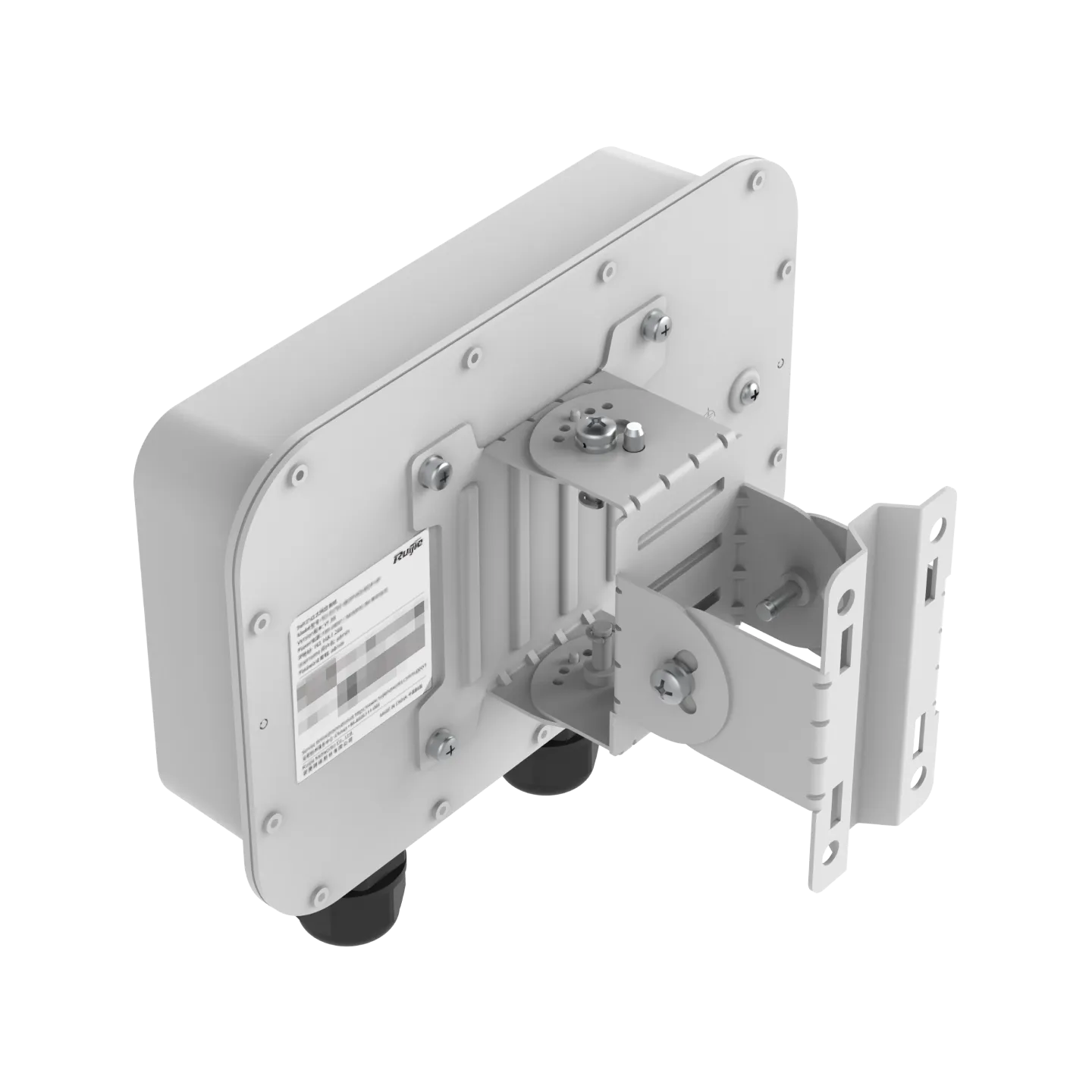

| Mounting | Wall / Pole |
| Max Clients | 256 associated devices |
| Transmit Power | Up to 28 dBm |
