RG-RAP72Pro
Product Highlights:
-
Perfect for connecting with enterprise switches to build a strong office network
-
Faster data transfer with 4K-QAM for improved performance
-
Sleek, compact design for simple and convenient installation
-
Smooth streaming enabled by Wi‑Fi 7’s exclusive MLO technology
-
Cutting-edge Wi‑Fi 7 performance delivering ultra-fast wireless speeds

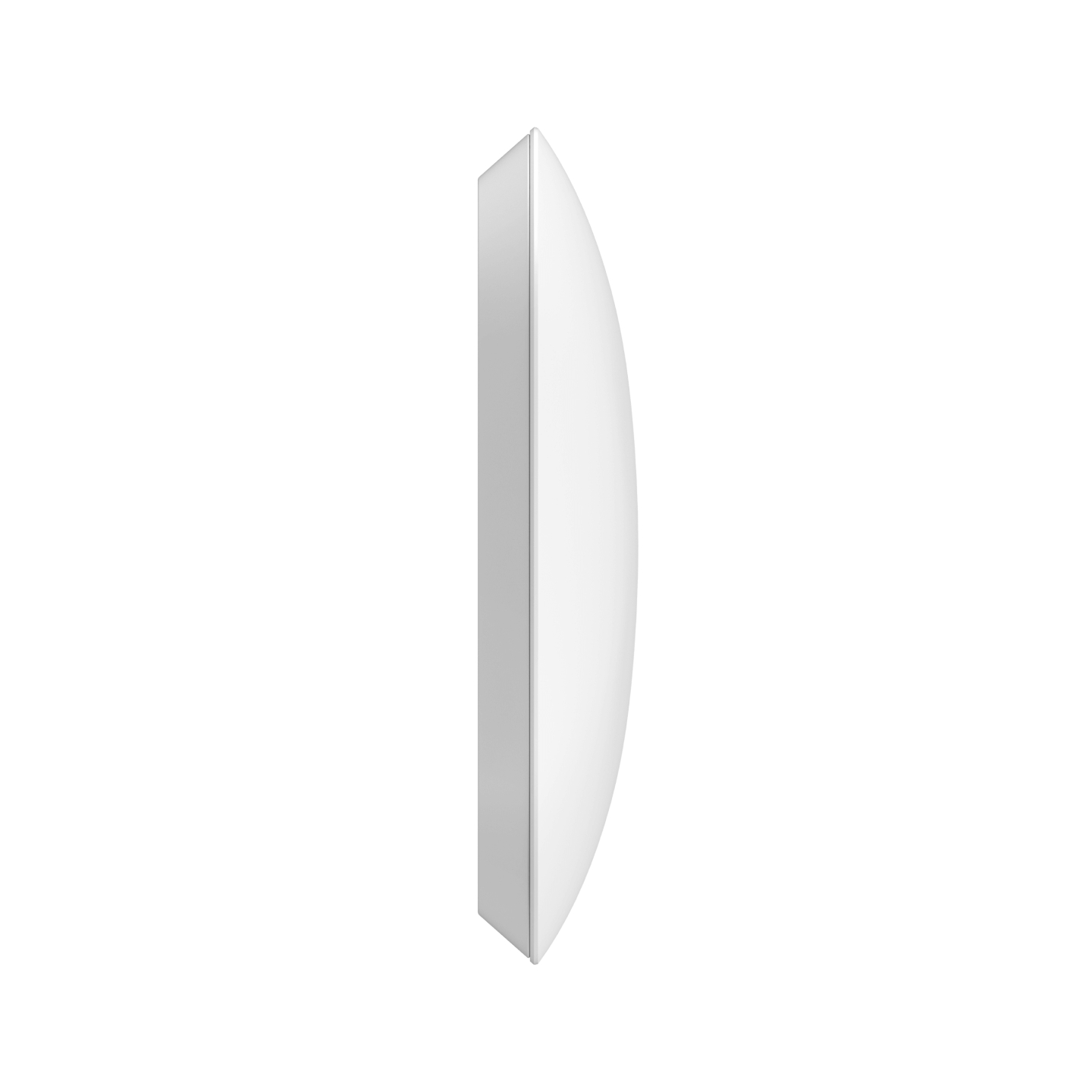

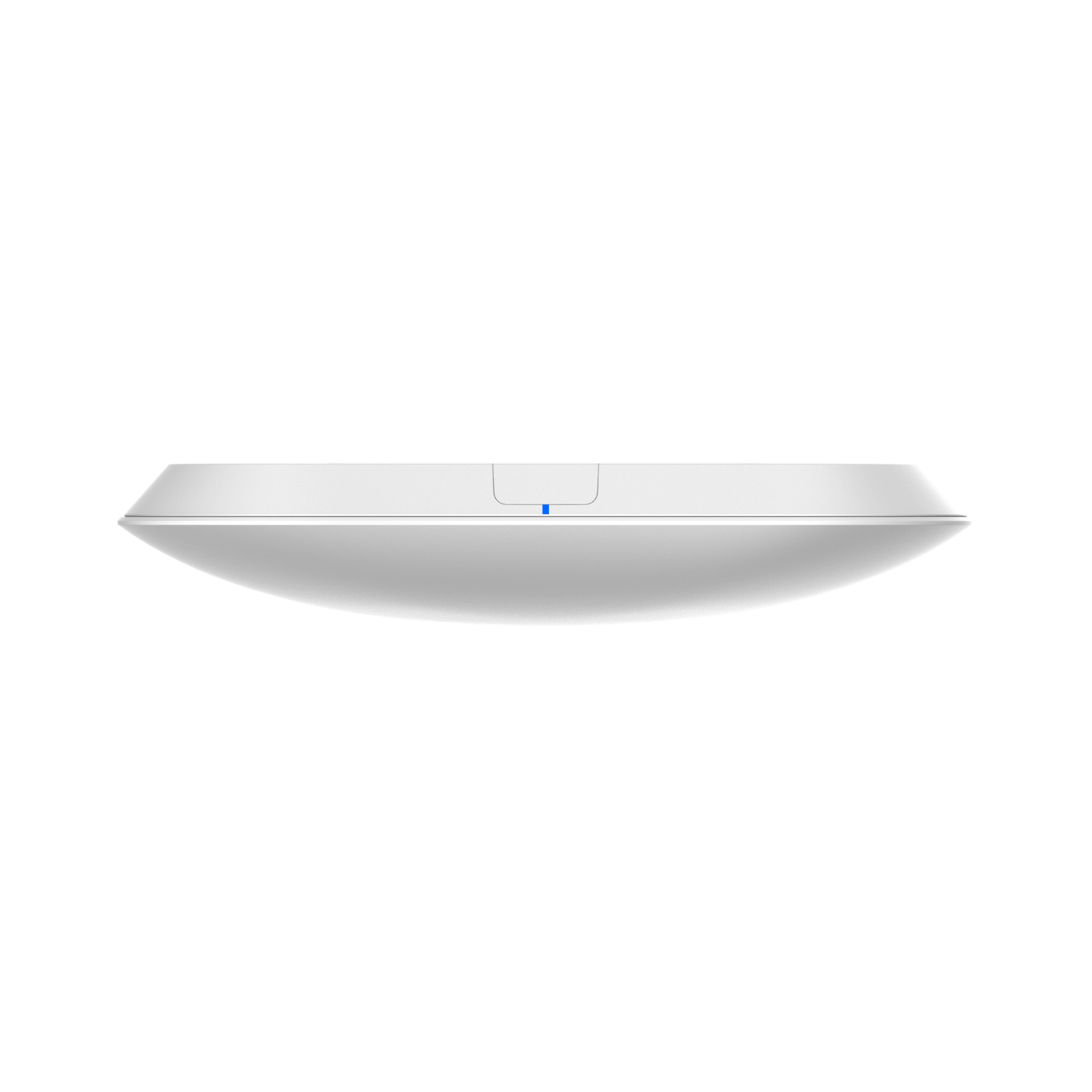

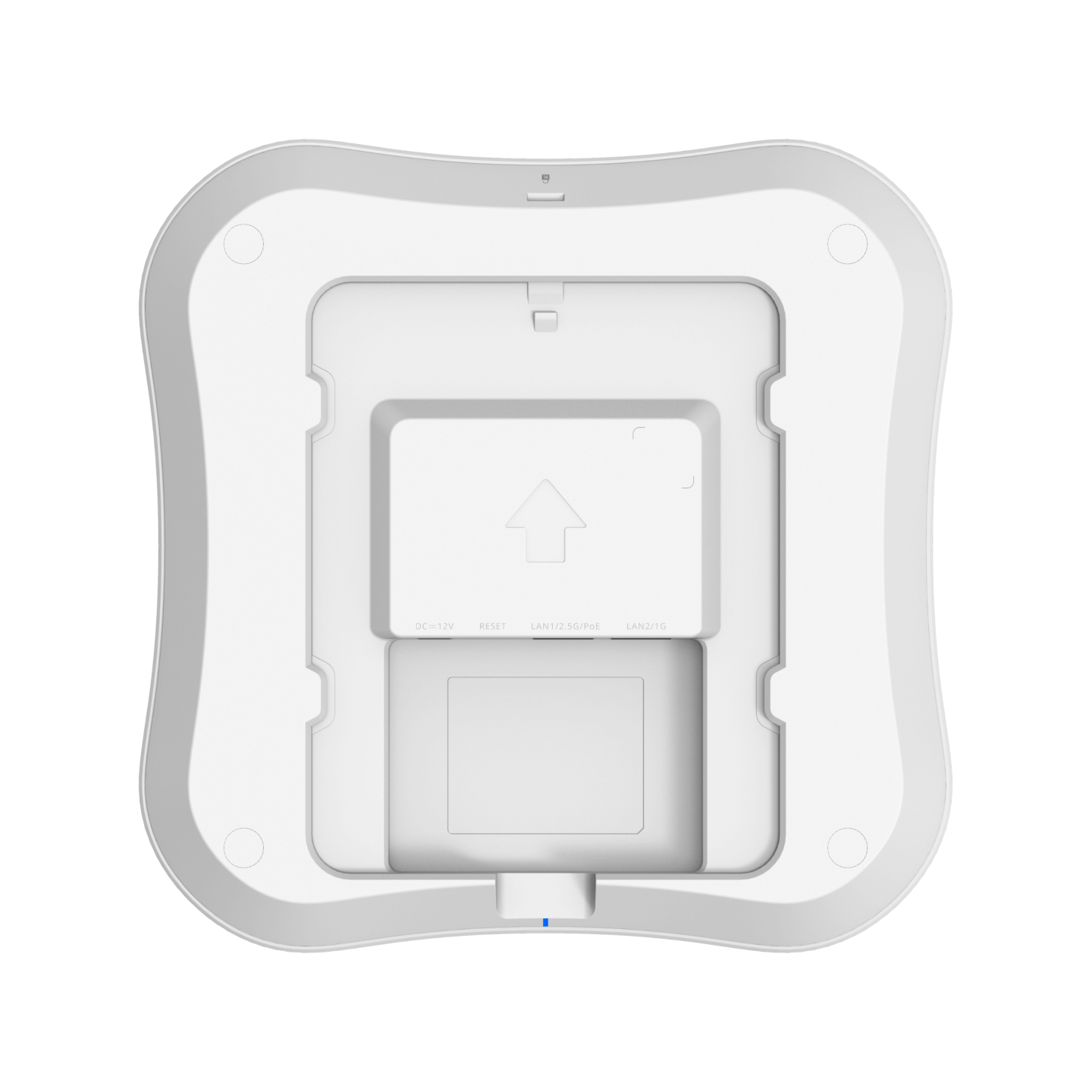

The RG‑RAP72Pro is a Wi‑Fi 7 dual‑band ceiling access point delivering up to 5011 Mbps with 5 spatial streams. It features built-in omnidirectional antennas, compact ceiling/wall design, PoE/PoE+ or DC power, one Gigabit and one 2.5 Gbps Ethernet port, and supports up to 511 clients on 5 GHz and 64 on 2.4 GHz, with IPv6 and easy network management.
| Specification | Details |
|---|---|
| Model | RG‑RAP72Pro Ceiling Access Point |
| Wi‑Fi Standard | Wi‑Fi 7 (802.11a/b/g/n/ac/ax/be) |
| Radio Design | Dual-band, 5 spatial streams (2.4 GHz 2×2, 5 GHz 3×3) |
| Maximum Data Rate | 5011 Mbps (2.4 GHz 688 Mbps, 5 GHz 4323 Mbps) |
| Antennas | Built-in omnidirectional |

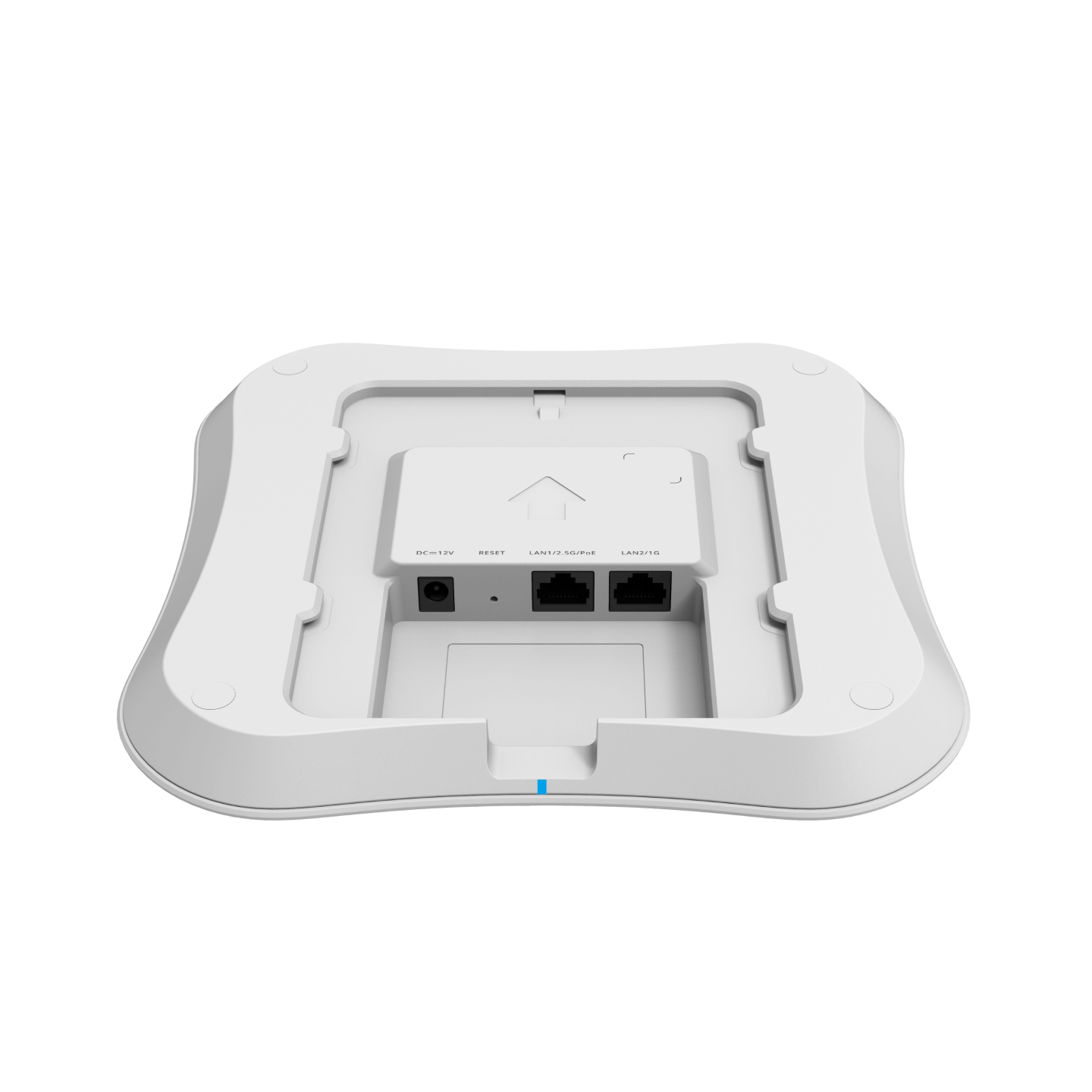

| Ethernet Ports | 1× Gigabit, 1× 2.5 Gbps |
| Power Options | PoE/PoE+ or DC adapter (12 V 2.5 A) |
| Max Power Consumption | 30 W |
| Operating Temperature | 0 °C to 40 °C |
| Mounting | Ceiling or wall mount |
| IP Rating | IP41 |
| Max Wireless Clients | 64 @ 2.4 GHz, 511 @ 5 GHz |
| Management Capacity | Up to 300 devices |
| IPv6 Support | Yes |
| Dimensions | 208 × 208 × 40 mm |
| Weight | ≤ 0.75 kg |
