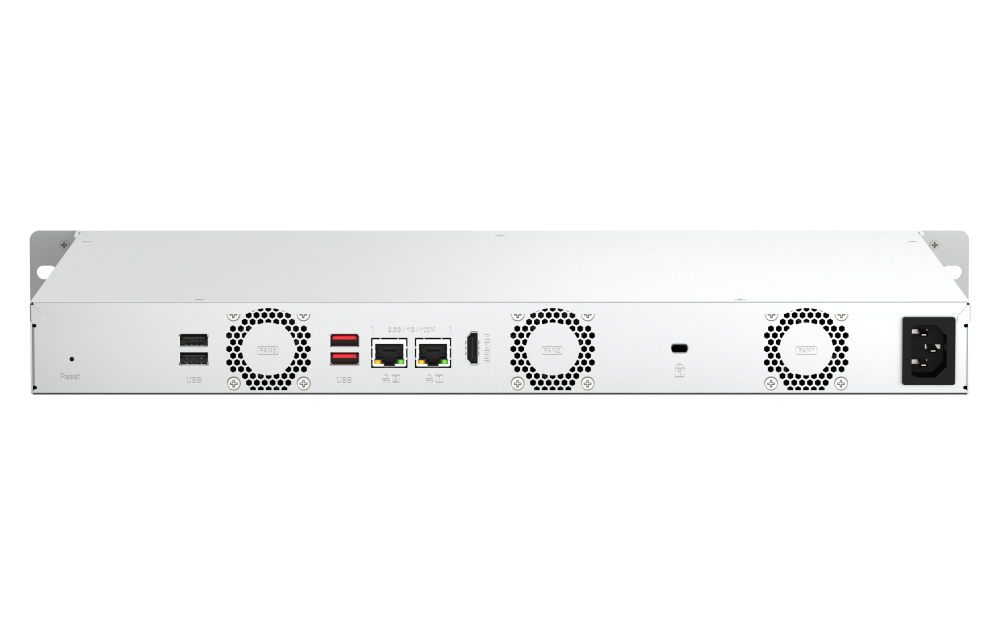

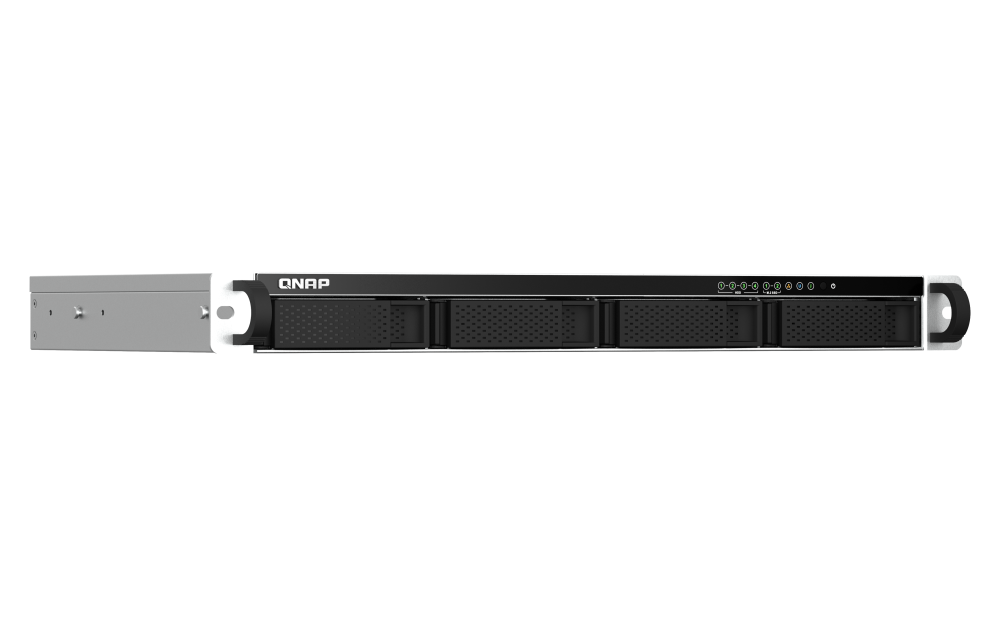

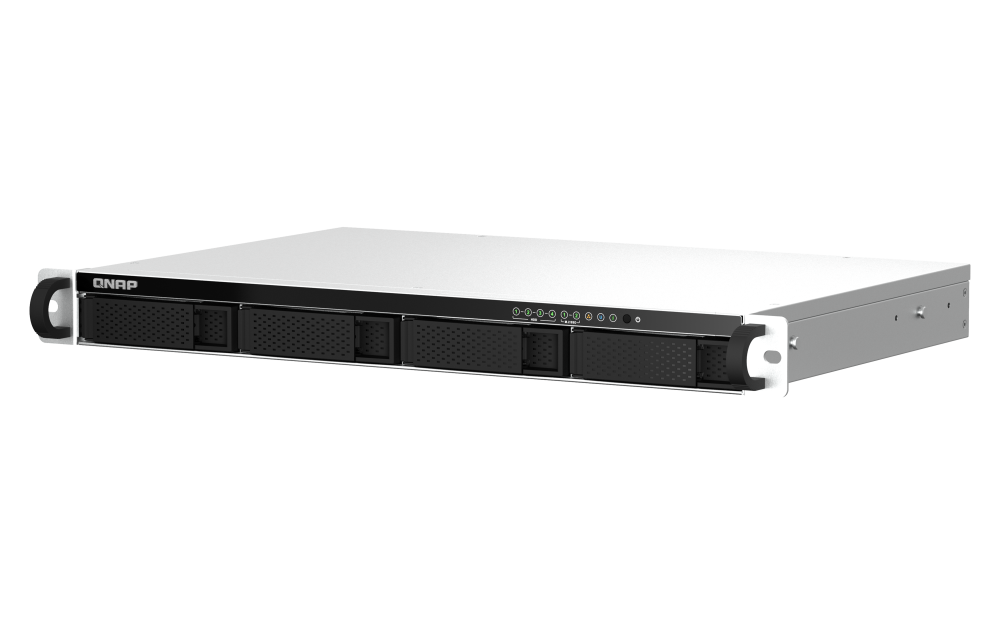

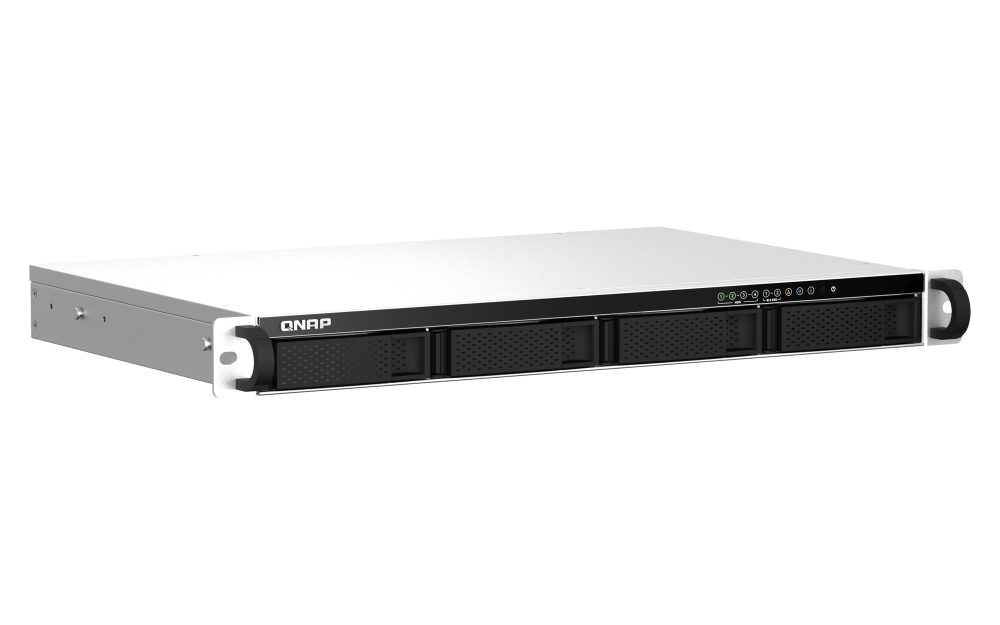

TS-464eU
Product Highlights:
• Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz
• Flash Memory: 4 GB SODIMM DDR4 (1 x 4 GB)
• CPU Architecture: 64-bit x86
• System Memory: 8GB RAM
• Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
• HDMI™ Output
• Hybrid cloud applications
• NVMe SSD application
The TS-464eU is powered by Intel® Celeron® N5095 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-464eU surpasses the previous generation.
| Component | Specification |
|---|---|
| CPU | Intel® Celeron® N4505 2-core/2-thread processor, burst up to 2.9 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | ✅ |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | ✅ |
| System Memory | 4 GB RAM |
| Maximum Memory | 4 GB |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives |
| Hot-swappable | ✅ |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1, Compatible with NVMe SSD PCIe Gen 3 and above |
| SSD Cache Acceleration Support | ✅ |
| 2.5 Gigabit Ethernet Port | 1 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port | Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card |
| Wake on LAN (WOL) | ✅ |
| Jumbo Frame | ✅ |
| PCIe Slot | 1, PCIe Gen 3 x2 |
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
| IR Sensor | Optional QNAP RM-IR004 remote control |
| HDMI™ Output | 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz) |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-4 |
| Buttons | Power, USB copy, Reset |
| Dimensions (HxWxD) | 165 × 170 × 226.5 mm |
| Weight (Net) | 2.88 kg |
| Weight (Gross) | 3.52 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 90W adapter, 100-240V |
| Power Consumption: HDD Sleep Mode | 20.33 W |
| Power Consumption: Operating Mode, Typical | 32.4 W |
| Fan | 1 x 120mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | ✅ |
| Standard Warranty | 2 Years |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 1500 |
